Pressure tanks
2016-5-25 11:46:35 Viewers:
- BrandAPPLE
- TypeHT-24L
Introduction
pressure tanks for water pumps

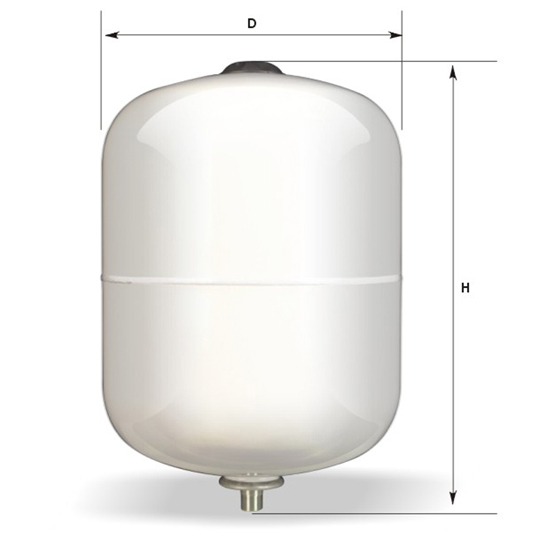

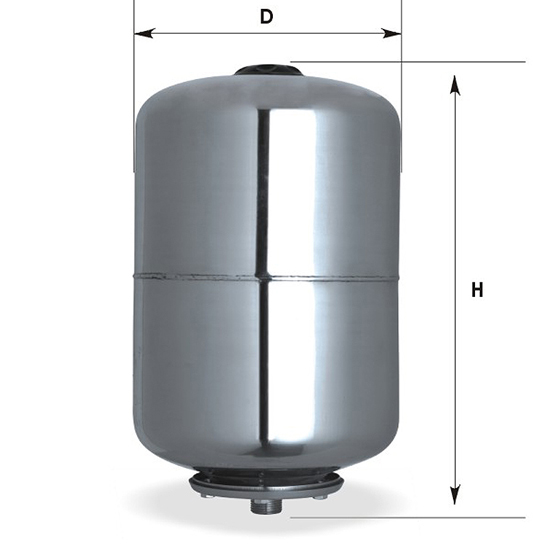

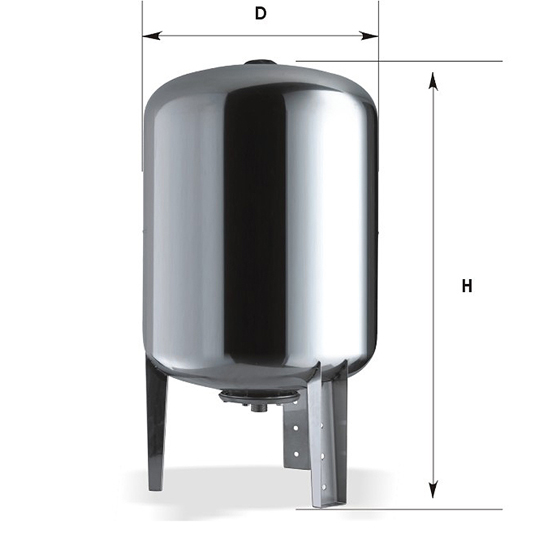

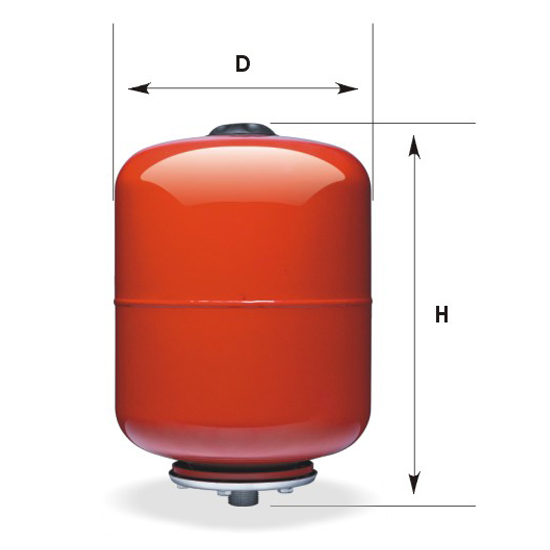

| Model |
dimension cm |
GW kg |
NW kg |
pre-pressure | Max. Prssure |
| 5Llong | 15.5*15.5*30 | 1.6 | 1.5 | 0.15—0.2MPA | 0.5MPA |
| 5L short | 20*20*22.5 | 1.6 | 1.5 | 0.15—0.2MPA | 0.5MPA |
| 8L vertical | 20*20*32 | 1.8 | 1.7 | 0.15—0.2MPA | 0.5MPA |
| 12L vertical | 28*28*37 | 3.2 | 2.8 | 0.15—0.2MPA | 0.5MPA |
| 19L vertical | 28*28*41 | 3.8 | 3.4 | 0.15—0.2MPA | 0.5MPA |
| 19L horizontal | 41*28*30 | 4.3 | 3.8 | 0.15—0.2MPA | 0.5MPA |

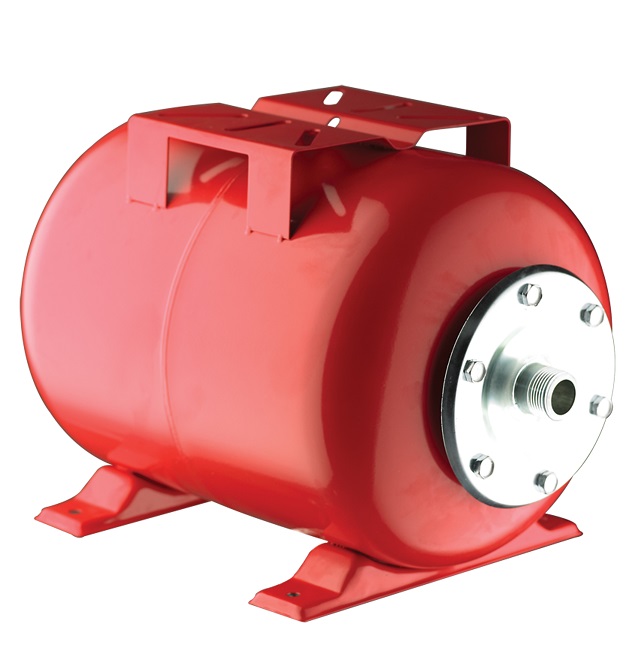

| 24L vertical | 28*28*45 | 4 | 3.6 | 0.15—0.2MPA | 0.5MPA |
| 24L horizontal | 28*30*45 | 4.5 | 4 | 0.15—0.2MPA | 0.5MPA |
| 24L ball | 35*35*35 | 4.2 | 3.7 | 0.15—0.2MPA | 0.5MPA |
| 24L flat | 35*35*31 | 4.1 | 3.6 | 0.15—0.2MPA | 0.5MPA |

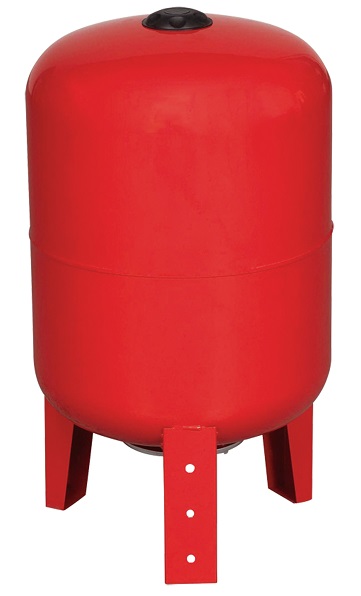

| 36L vertical | 36*36*58 | 6.6 | 6 | 0.15—0.2MPA | 0.5MPA |
| 36L horizontal | 36*38*46 | 6.6 | 6 | 0.15—0.2MPA | 0.5MPA |
| 50L vertical | 36*36*68 | 7.5 | 7 | 0.15—0.2MPA | 0.5MPA |
| 50L horizontal | 36*38*55 | 7.5 | 7 | 0.15—0.2MPA | 0.5MPA |
| 80L vertical | 46*46*72 | 11 | 10 | 0.15—0.2MPA | 0.5MPA |
| 80L horizontal | 45*49.5*59.5 | 11 | 10 | 0.15—0.2MPA | 0.5MPA |
| 100L vertical | 46*46*79 | 14 | 13 | 0.15—0.2MPA | 0.5MPA |
| 100L horizontal | 45*49.5*68.5 | 14 | 13 | 0.15—0.2MPA | 0.5MPA |

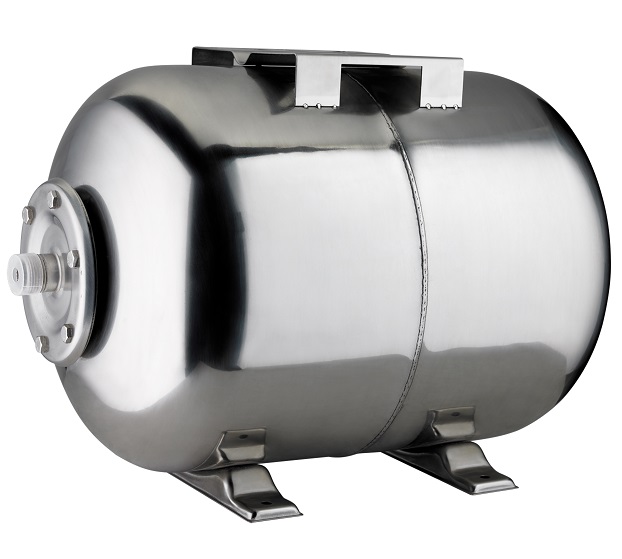

| 24L-SS horizontal | 45*28*30 | 4.1 | 3.7 | 0.15—0.2MPA | 0.5MPA |
| 50-SS horizontal | 53*36*38 | 6.6 | 6.1 | 0.15—0.2MPA | 0.5MPA |
